transparent led display p6/glass led display/glass video wall

FOB Reference Price:Get Latest Price
US $300-600 / Square Meter | 5 Square Meter/Square Meters (Min. Order)
Supply Ability:
1000 Square Meter/Square Meters per Year
Port:
GUANGZHOU
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Model Number:
T-6
Usage:
Semi-outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
6.25
Screen Dimension:
Customized Size
Packaging & Delivery
Packaging Details
flight case
Delivery Time
20 days

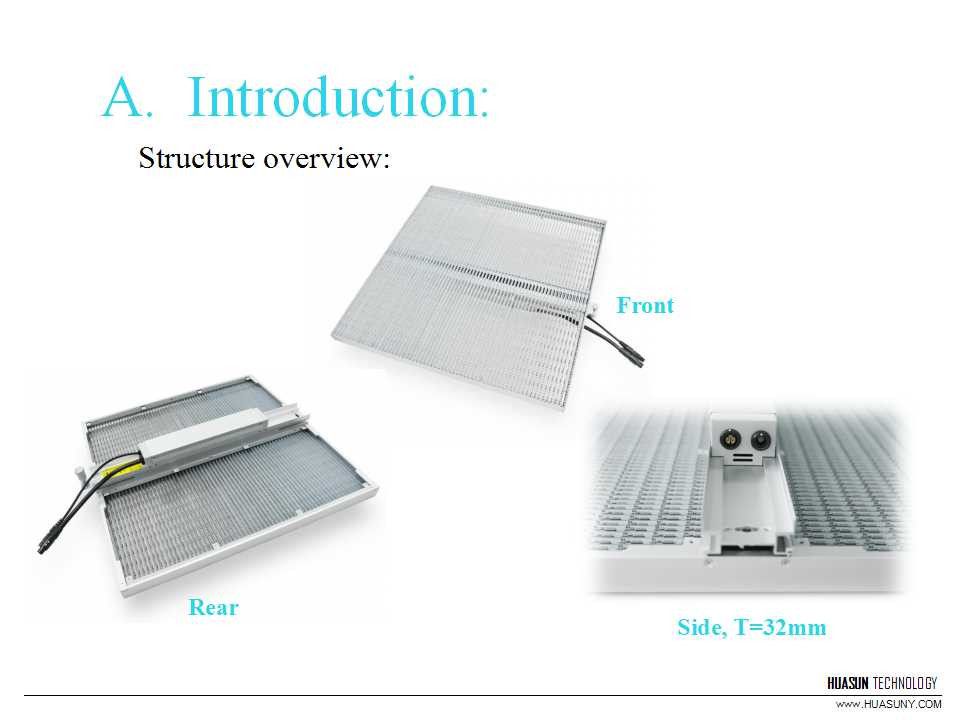

Introduction



Nowadays glass LED video display was widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, chain store, hotel, municipal & public buildings and so on. It adds a high-tech element to those places and hold more attention.



Glass LED video display can be indoor installation, outdoor use. It has no effect on the architectural appearance so has better advertising benefits and aesthetic property than normal LED display.





Huasun glass LED video display provide excellent solution for glass architecture. All of our glass video wall display with high transparency and could be customized designed to fit the glass windows of the building. Part of or whole of the glass curtain of the building could be changed to a huge vivid display and make amazing effect.

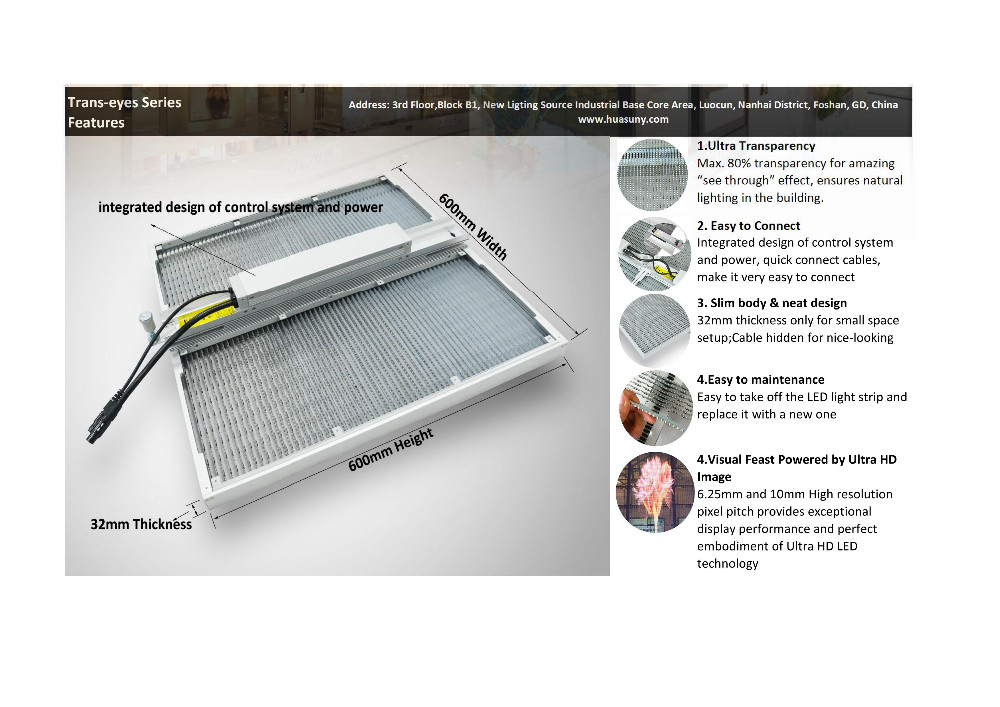

Features:





Specification:

Model No

TS-6.25

Pixel Pitch

X:6.25 / Y:9.375

Module size

W=width  H=height

W=600mm

H=600mm

Density

17066 Dot / m²

Pixel Configuration

Brightness

5500nits / 3000nits

View distance

>6m

Max. Power Consumption

1069 W/

Average. Power Consumption

360 W/

Weight

21Kg/sq. m

Work voltage

DC 5V

Brightness level

16 levels

Bit depth per color

14 bit

Bit depth per pixel

42 bit

Visual Angle

Horizontal: 120;  Vertical: 120

Data Refresh Rate

≥1250Hz

Drive mode

Constant current

Signal type

AV, S-Video, VGA, CVBS, HDMI, DVI

Control Distance

HSYV; <100m

Body  structure

Aluminum

IP

IP20

Ambient Temperature

-20 ~ +50 °C

Relative Humidity

10% ~ 90%

Power system

Power-400w

Installation

Hanging/stacking

Safety certificate

CE  FCC  ROHS





After-Sale Service

1.Warranty1 Years. Lifetime free maintenance and upgrade.
2. Free reserve part

3. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.
